T12 toT8, Simplifed Wiring for your customer

Wiring Diagram
Upgrading from T12 lamps to T8 lampsWiring DiagramWiring Diagram1 Wiring Diagram2

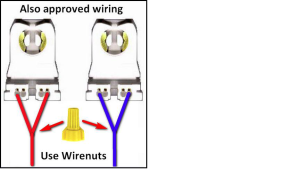

By Shunting the lamp socket (making both contacts common to each other) both pins on the lamp have a positive electrical contact with the one lead wire to each lamp socket.
When upgrading from T12 lamps to T8 lamps a four (4) lamp ballast is also an option.
Replace any defective lamp holders.
